1. Einführung

QtDragon und QtDragon_hd werden mit dem QtVCP-Framework entwickelt. Es ist die kreative Vision der Forum Persönlichkeit Persei8. Vieles davon basiert auf der hervorragenden Arbeit anderer in der LinuxCNC-Gemeinschaft. LinuxCNC’s Version ist von Persei8’s Github Versionen angepasst. Es ist in erster Linie für 3/4-Achsen-Maschinen wie Fräsmaschinen oder Router gedacht. Es funktioniert gut mit einem Touchscreen und/oder einer Maus. QtDragon unterstützt mehrere Möglichkeiten zum Antasten von Werkzeugen und zum Antasten von Werkstücken. Sie können LinuxCNC’s externe Offsets Fähigkeit verwenden, um automatisch die Spindel während einer Pause zu erhöhen. Wenn Sie die VersaProbe-Option und Remap-Code können Sie automatische Werkzeuglängen-Abtastung beim Werkzeugwechsel hinzuzufügen.

Anmerkung
QtDragon and QtVCP are relatively new programs added into LinuxCNC. Bugs and oddities are possible. Please test carefully when using a dangerous machine. Please forward reports to the forum or maillist.

1.1. QtDragon

QtDragon-Router
Abbildung 1. QtDragon - 3 or 4 axis sample (1440x860) in silver theme

QtDragon ist von einer Auflösung von 1280x768 bis 1680x1200 größenveränderbar. Es funktioniert im Fenstermodus auf jedem Monitor mit höherer Auflösung, aber nicht auf Monitoren mit niedrigerer Auflösung.

1.2. QtDragon_hd

QtDragon_hd

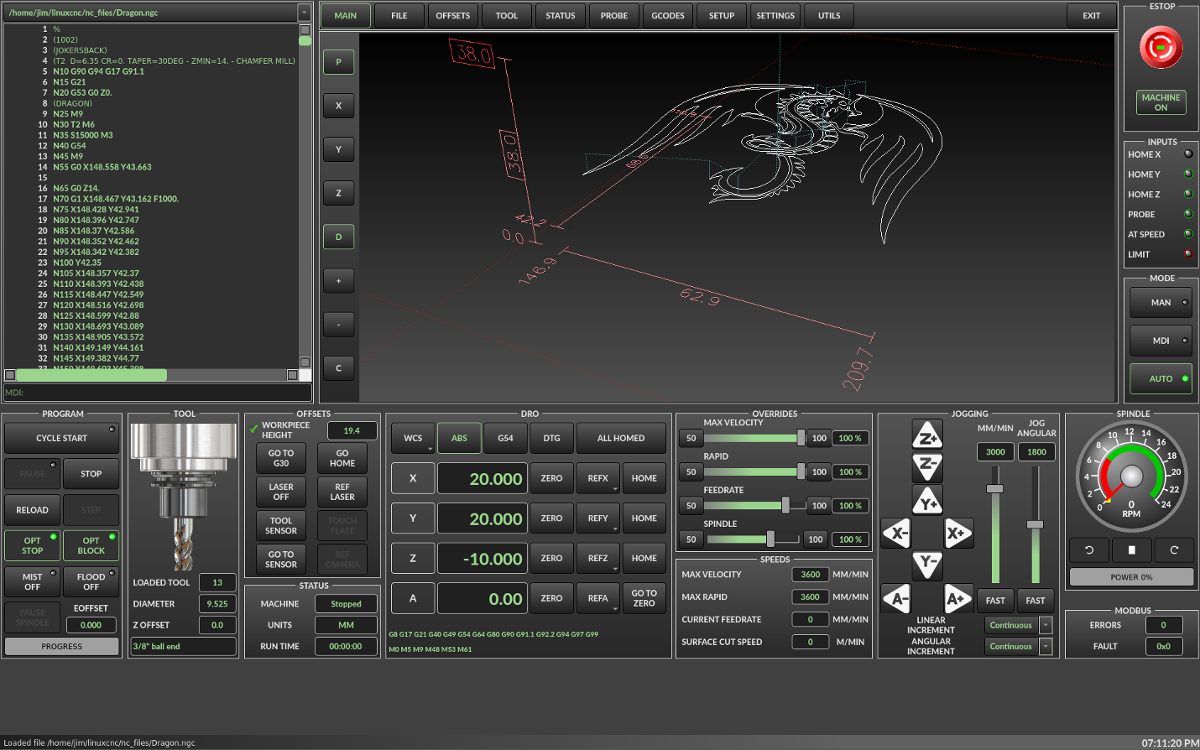

Abbildung 2. QtDragon_hd - 3 or 4 axis sample for larger monitors (1920x1056) in dark theme

QtDragon_hd hat ein ähnliches Design wie QtDragon, wurde aber modifiziert, um den zusätzlichen Platz auf modernen, größeren Monitoren zu nutzen. Es gibt einige kleine Unterschiede im Layout und im Nutzen.

QtDragon_hd has a resolution of 1920x1056 and is not resizeable. It will work in window mode on any monitor with higher resolution but not on monitors with lower resolution.

2. Getting Started - The INI File

If your configuration is not currently set up to use QtDragon, you can change it by editing the INI file sections. For an exhaustive list of options, see the display section of the INI file documentation.

Anmerkung
You can only have one of each section (e.g., [HAL]) in the INI file. If you see in these docs multiple section options, place them all under the one appropriate section name.

2.1. Anzeige (engl. display)

In the section [DISPLAY] change the DISPLAY = assignment to read:

  • qtdragon für eine kleine Version

  • qtdradon_hd für die große Version.

You can add -v, -d, -i, or -q for (respectably) verbose, debug, info or quiet output to the terminal.

[DISPLAY]
DISPLAY = qtvcp qtdragon

2.2. Einstellungen

To keep track of preferences, QtDragon looks for a preference text file. Add the following entry under the [DISPLAY] heading.
It can use ~ for home directory or WORKINGFOLDER or CONFIGFOLDER to represent QtVCP’s idea of those directories:
This example will save the file in the config folder of the launch screen. (Other options are possible see the QtVCP’s screenoption widget docs.)

[DISPLAY]
PREFERENCE_FILE_PATH = WORKINGFOLDER/qtdragon.pref

2.3. Protokollierung (engl. logging)

You can specify where to save history/logs.
These file names can be user selected.
In the section [DISPLAY] add:

[DISPLAY]
MDI_HISTORY_FILE = mdi_history.dat
MACHINE_LOG_PATH = machine_log.dat
LOG_FILE = qtdragon.log

2.4. Override-Kontrollen

These set qtdragon’s override controls (1.0 = 100 percent):

[DISPLAY]
MAX_SPINDLE_0_OVERRIDE = 1.5
MIN_SPINDLE_0_OVERRIDE = .5
MAX_FEED_OVERRIDE       = 1.2

2.5. Spindelsteuerungen

Spindelsteuerungseinstellungen (in U/min und Watt):

[DISPLAY]
DEFAULT_SPINDLE_0_SPEED = 500
SPINDLE_INCREMENT = 200
MIN_SPINDLE_0_SPEED = 100
MAX_SPINDLE_0_SPEED = 2500
MAX_SPINDLE_POWER = 1500

2.6. Jogging-Inkremente

Set selectable jogging increments.
These increments can be user changed.

[DISPLAY]
INCREMENTS = Continuous, .001 mm, .01 mm, .1 mm, 1 mm, 1.0 inch, 0.1 inch, 0.01 inch
ANGULAR_INCREMENTS = 1, 5, 10, 30, 45, 90, 180, 360

2.7. Jog-Geschwindigkeit

Set jog speed controls (in units per second)

[DISPLAY]
MIN_LINEAR_VELOCITY     = 0
MAX_LINEAR_VELOCITY     = 60.00
DEFAULT_LINEAR_VELOCITY = 50.0
DEFAULT_ANGULAR_VELOCITY = 10
MIN_ANGULAR_VELOCITY = 1
MAX_ANGULAR_VELOCITY = 360

2.8. Dialogsystem für Benutzermeldungen

Optional popup custom message dialogs, controlled by HAL pins.
MESSAGE_TYPE can be okdialog or yesnodialog. See qtvcp/library/messages for more information.
This example shows how to make a dialog that requires the user to select ok to acknowledge and hide.
These dialogs could be used for such things as low lube oil warnings, etc.

[DISPLAY]
MESSAGE_BOLDTEXT = Dies ist der kurze Text
MESSAGE_TEXT = Dies ist der längere Text des Tests der beiden Typen. Er kann länger sein als der Text der Statusleiste
MESSAGE_DETAILS = BOTH DETAILS
MESSAGE_TYPE = okdialog
MESSAGE_PINNAME = oktest

2.9. Benutzerdefinierte VCP-Panels einbetten

You can optionally embed QtVCP Virtual Control Panels into the QtDragon or QtDragon_hd screen.
These panels can be either user built or builtin QtVCP Panels.
See QtVCP/VCP panels for other available builtin panels.

The EMBED_TAB_NAME entry will used as the title for the new tab.(must be unique)
Tab EMBED_TAB_LOCATION options include: tabWidget_utilities, tabWidget_setup and stackedWidget_mainTab.
Tab EMBED_TAB_COMMAND specifies what embed-able program to run, including any of its command line options.

If using the tabWidget_utilities or tabWidget_setup locations, an extra tab will appear with the panel.
If using stackedWidget_mainTab, a button labelled User will appear.
Pressing this button will cycle through displaying all available panels (specified for this location) on the main tab area.

2.9.1. Embedding Vismach Mill

Sample adding a builtin panel to the utilities tab, i.e., a graphical animated machine using the vismach library.
[DISPLAY]
EMBED_TAB_NAME = Vismach Demo
EMBED_TAB_COMMAND = qtvcp vismach_mill_xyz
EMBED_TAB_LOCATION = tabWidget_utilities

2.9.2. Embedding Spindle Belts Panel

This example panel is designed to display additional RS485 VFD data and also to configure a 4 sheave, 2 belt spindle drive via a series of buttons.

QtDragon spindle_belts Panel - Spindle Belts VCP
[DISPLAY]
EMBED_TAB_NAME = Spindle Belts
EMBED_TAB_COMMAND = qtvcp spindle_belts
EMBED_TAB_LOCATION = tabWidget_utilities

2.10. Subroutine Paths

If using NGCGUI, remap or custom M codes routines, LinuxCNC needs to know where to look for the files.
This sample is typical of what is needed for NgcGui, Basic Probe. and Versa Probe remap code.
These paths will need to be adjusted to point to the actual files on your system. RS274NZGC Section Details

[RS274NGC]
SUBROUTINE_PATH = :~/linuxcnc/nc_files/examples/ngcgui_lib:~/linuxcnc/nc_files/examples/ngcgui_lib/utilitysubs; \
~/linuxcnc/nc_files/examples/probe/basic_probe/macros:~/linuxcnc/nc_files/examples/remap-subroutines: \
~/linuxcnc/nc_files/examples/ngcgui_lib/remap_lib

QtVCP’s NGCGUI program also need to know where to open for subroutine selection and pre-selection.
NGCGUI_SUBFILE_PATH must point to an actual path on your system and also a path described in SUBROUTINE_PATHS.

[DISPLAY]
# NGCGUI subroutine path.
# Thr path must also  be in [RS274NGC] SUBROUTINE_PATH
NGCGUI_SUBFILE_PATH = ~/linuxcnc/nc_files/examples/ngcgui_lib
# pre selected programs tabs
# specify filenames only, files must be in the NGCGUI_SUBFILE_PATH
NGCGUI_SUBFILE = slot.ngc
NGCGUI_SUBFILE = qpocket.ngc

2.11. Vorschau Kontrolle

Magic comments can be used to control the G-code preview.

On very large programs the preview can take a long time to load. You can control what is shown and what is hidden the the graphics screen by adding the appropriate comments from this list into your G-code:

(PREVIEW,stop)
(PREVIEW,hide)
(PREVIEW,show)

2.12. Programmerweiterungen/Filter

You can control what programs are displayed in the filemanager window with program extensions.
Create a line with the . endings you wish to use separated by commas, then a space and the description.
You can add multiple lines for different selections in the combo box.

[FILTER]
PROGRAM_EXTENSION = .ngc,.nc,.tap G-Code file (*.ngc,*.nc,*.tap)

QtDragon has the ability to send loaded files through a filter program. This filter can do any desired task: Something as simple as making sure the file ends with M2, or something as complicated as generating G-code from an image. See Filter Programs for more information.

The [FILTER] section of the INI file controls how filters work. First, for each type of file, write a PROGRAM_EXTENSION line. Then, specify the program to execute for each type of file. This program is given the name of the input file as its first argument, and must write rs274ngc code to standard output. This output is what will be displayed in the text area, previewed in the display area, and executed by LinuxCNC when Run.

The following lines add support for the image-to-gcode converter included with LinuxCNC and running Python based filter programs:

[FILTER]
PROGRAM_EXTENSION = .png,.gif,.jpg Greyscale Depth Image
PROGRAM_EXTENSION = .py Python Script
png = image-to-gcode
gif = image-to-gcode
jpg = image-to-gcode
py = python

2.13. Sonden-/Touchplate-/Lasereinstellungen

QtDragon has INI entries for two optional probing tab screens available. Comment/uncomment which ever you prefer.

  • Versa probe is a QtVCP ported version of a popular GladeVCP probing panel.

  • Basic Probe is a QtVCP ported version based on the third party basic probe screen.

Both perform similar probing routines, though Versa probe optionally handles auto tool measurement.

[PROBE]
#USE_PROBE = versaprobe
USE_PROBE = basicprobe

2.14. Abort detection

When using qtdragon’s probing routines, it is important to detect a user abort request.
By default, LinuxCNC does not report an abort in a useful way for the probe routines.
You need to add a ngc file to print out an error that can be detected. Remap Abort Details

[RS274NGC]
# on abort, this ngc file is called. required for basic/versa probe routines. +
ON_ABORT_COMMAND=O <on_abort> call

This example code will send a message on abort. The probe routines can detect this sample.
According to the setting above, it would need to be saved as on_abort.ngc within LinuxCNC’s [RS274NGC] SUBROUTINE_PATHS and [DISPLAY] PROGRAM_PREFIX search paths.

o<on_abort> sub

o100 if [#1 eq 5]
    (machine on)
o100 elseif [#1 eq 6]
    (machine off)
o100 elseif [#1 eq 7]
    (estopped)
o100 elseif [#1 eq 8]
    (msg,Process Aborted)
o100 else
    (DEBUG,Abort Parameter is %d[#1])
o100 endif

o<on_abort> endsub
m2

2.15. Startup codes

You should set default M/G code for start up. These will be overridden by running a NGC file.
These are only sample codes, integrator should choose appropriate codes.

[RS274NGC]
# start up G/M codes when first loaded
RS274NGC_STARTUP_CODE = G17 G20 G40 G43H0 G54 G64P0.0005 G80 G90 G94 G97 M5 M9

2.16. Makro-Buttons

QtDragon has up to ten convenience buttons for calling macro actions.
These could also call OWord routines if desired.
In the sample configurations they are labelled for moving between current user system origin (zero point) and Machine system origin.
User origin is the first MDI command in the INI list, machine origin is the second.
This example shows how to move Z axis up first. The commands are separated by the ;.

The label is set after the comma. The symbols \n adds a line break.

[MDI_COMMAND_LIST]
# for macro buttons
MDI_COMMAND = G0 Z25;X0 Y0;Z0, Goto\nUser\nZero
MDI_COMMAND = G53 G0 Z0;G53 G0 X0 Y0,Goto\nMachn\nZero

2.17. Post GUI HAL File

These optional HAL files will be called after QtDragon has loaded everything else.
You can add multiple line for multiple file. Each one will be called in the order they appear.
Calling HAL files after QtDragon is already loaded assures that QtDragon’s HAL pins are available.

Sample with typical entries for the specificion of HAL files to be read after the QtDragon was started. Adjust these lines to match actual requirements.
[HAL]
POSTGUI_HALFILE = qtdragon_hd_postgui.hal
POSTGUI_HALFILE = qtdragon_hd_debugging.hal

2.18. Post GUI HAL Command

These optional HAL commands will be run after QtDragon has loaded everything else.
You can add multiple line. Each one will be called in the order they appear.
Any HAL command can be used.

Sample with typical files in INI file to load modules after the GUI is available. Adjusti these to match your actual requirements.
[HAL]
POSTGUI_HALCMD = loadusr qtvcp test_probe
POSTGUI_HALCMD = loadusr qtvcp test_led
POSTGUI_HALCMD = loadusr halmeter

2.19. Integrierte Beispielkonfigurationen

The sample configurations sim/qtdragon/ or sim/qtdragon_hd are already configured to use QtDragon as the screen. There are several examples that demonstrate various machine configurations.

3. Tastenbelegungen

QtDragon is not intended to primarily use a keyboard for machine control.
It lacks many keyboard short cuts that for instance AXIS has - but you can use a mouse or touchscreen.
There are several key presses that will control the machine for convenience.

F1 - Estop ein/aus
F2 - Maschine ein/aus
F12 - Stil-Editor
Home - Start aller Verbindungen der Maschine
Escape - Abbruch der Bewegung
Pause - Maschinenbewegung anhalten

4. Buttons

Buttons that are checkable will change their text colour when checked. This is controlled by the stylesheet/theme

5. Virtuelle Tastatur

QtDragon includes a virtual keyboard for use with touchscreens. To enable the keyboard, check the Use Virtual Keyboard checkbox in the Settings page. Clicking on any input field, such as probe parameters or tool table entries, will show the keyboard. To hide the keyboard, do one of the following:

  • Klicken Sie auf den MAIN page Button

  • The currently selected page button.

  • in den AUTO-Modus wechseln

Es ist zu beachten, dass bei der Verwendung der virtuellen Tastatur das Jogging der Tastatur deaktiviert ist.

6. HAL-Pins

These pins are specific to the QtDragon screen.
There are of course are many more HAL pins that must be connected for LinuxCNC to function.

If you need a manual tool change prompt, add these lines in your postgui file.
QtDragon emulates the hal_manualtoolchange HAL pins - don’t load the separate HAL component hal_manualtoolchange.

net tool-change      hal_manualtoolchange.change   <=  iocontrol.0.tool-change
net tool-changed     hal_manualtoolchange.changed  <=  iocontrol.0.tool-changed
net tool-prep-number hal_manualtoolchange.number   <=  iocontrol.0.tool-prep-number

Also if you don’t have an automatic tool changer make sure these pins are connected in one of the HAL files:

net tool-prepare-loopback iocontrol.0.tool-prepare => iocontrol.0.tool-prepared

This input pin should be connected to indicate probe state.

qtdragon.led-probe

These pins are inputs related to spindle VFD indicating.
The volt and amp pins are used to calculate spindle power. You must also set the MAX_SPINDLE_POWER in the INI.

qtdragon.spindle-modbus-connection
qtdragon.spindle-modbus-errors
qtdragon.spindle-amps
qtdragon.spindle-fault
qtdragon.spindle-volts

This bit pin is an output to the spindle control to pause it.
You would connect it to spindle.0.inhibit.

qtdragon.spindle-inhibit

QtDragon spindle speed display and spindle-at-speed LED require that spindle.0.speed-in be connected to spindle speed feedback.
Encoder or VFD feedback could be used, as long as the feedback is in revolutions per second (RPS).
If no feedback is available you can have the display show the requested speed by connecting pins like so:

net spindle-speed-feedback spindle.0.speed-out-rps => spindle.0.speed-in

Dieser Bit-Ausgangspin kann angeschlossen werden, um einen Laser einzuschalten:

qtdragon.btn-laser-on

Dieser Float-Ausgangspin zeigt die Kameradrehung in Grad an:

qtdragon.cam-rotation

These bit/s32/float pins are related to external offsets if they are used:

qtdragon.eoffset-clear
qtdragon.eoffset-enable
qtdragon.eoffset-value
qtdragon.eoffset-spindle-count
qtdragon.eoffset-zlevel-count

Diese float-Ausgangspins spiegeln die aktuelle Jograte des Schiebers (in Maschineneinheiten) wider:

qtdragon.slider-jogspeed-linear
qtdragon.slider-jogspeed-angular

Diese float-Ausgangsstifte geben die aktuellen Schieberegler-Übersteuerungsraten wieder:

qtdragon.slider-override-feed
qtdragon.slider-override-maxv
qtdragon.slider-override-rapid
qtdragon.slider-override-spindle

These output pins are available when setting the Versa Probe INI option. They can be used for auto-tool-length-probe at tool change - with added remap code.

qtversaprobe.enable
qtversaprobe.blockheight
qtversaprobe.probeheight
qtversaprobe.probevel
qtversaprobe.searchvel
qtversaprobe.backoffdist

7. HAL-Dateien

The HAL files supplied are for simulation only. A real machine needs its own custom HAL files. The QtDragon screen works with 3 or 4 axes with one joint per axis or 3 or 4 axes in a gantry configuration (2 joints on 1 axis).

8. Manueller Werkzeugwechsel

If your machine requires manual tool changes, QtDragon can pop a message box to direct you. QtDragon emulates the hal_manualtoolchange HAL pins - don’t load the separate HAL component hal_manualtoolchange. Hereto you must connect the proper HAL pin in the postgui HAL file, for example:

net tool-change      hal_manualtoolchange.change   <=  iocontrol.0.tool-change
net tool-changed     hal_manualtoolchange.changed  <=  iocontrol.0.tool-changed
net tool-prep-number hal_manualtoolchange.number   <=  iocontrol.0.tool-prep-number

9. Spindel

The screen is intended to interface to a VFD, but will still work without it.
There are a number of VFD drivers included in the LinuxCNC distribution.
It is up to the end user to supply the appropriate driver and HAL file connections according to his own machine setup.

10. Automatisches Anheben der Z-Achse bei Pausieren der Spindel

QtDragon can be set up to automatically raise and lower the Z axis when the spindle is paused.
When a program is paused, then you press the Spindle Pause button to stop the spindle and raise it in Z.
Press the button again to start spindle and lower it, then unpause the program.
If you have the HAL pin spindle.0.at-speed connected to a driving pin, the spindle will not lower until the pin is true
You typically connect this to a timer or logic that detects the speed of the spindle.
If that pin is not connected to a driving pin, a dialog will pop up to warn you to wait for the spindle response.
The spindle will lower when you close that dialog.
The amount to raise is set in the Settings tab under the heading SPINDLE RAISE.
This line edit box can only be directly set when not in Auto mode.
The up/down buttons can be used to adjust the raise amount at any time, including when the spindle is already raised.
The button increments are 1 inch or 5 mm (depending on the units the machine is based on)
This optional behaviour requires additions to the INI and the qtdragon_post_gui HAL file.

In der INI, unter der Überschrift AXIS_Z.

[AXIS_Z]
OFFSET_AV_RATIO = 0.2

In der Datei qtdragon_postgui.hal hinzufügen:

# Set up Z axis external offsets
net eoffset_clear    qtdragon.eoffset-clear => axis.z.eoffset-clear
net eoffset_count    qtdragon.eoffset-spindle-count => axis.z.eoffset-counts
net eoffset          qtdragon.eoffset-value <= axis.z.eoffset

# uncomment für dragon_hd
#net limited          qtdragon.led-limits-tripped <= motion.eoffset-limited

setp axis.z.eoffset-enable 1
setp axis.z.eoffset-scale 1.0

11. Z-Level-Kompensation

QtDragon_hd kann mit dem externen Programm G-code Ripper so eingestellt werden, dass es Höhenänderungen der Z-Ebene prüft und ausgleicht.

Anmerkung
Diese Funktion ist nur in der Version QtDragon_hd verfügbar.

Z level compensation is a bed levelling/distortion correction function typically used in 3D printing or engraving. It uses a HAL non-realtime component which utilizes the external offsets feature of LinuxCNC. The component has a HAL pin that specifies an interpolation type, which must be one of cubic, linear or nearest (0, 1, 2 respectively). If none is specified or if an invalid number is specified, the default is assumed to be cubic.

When Z LEVEL COMP is enabled, the compensation component reads a probe data file, which must be called probe_points.txt. The file can be modified or updated at any time while compensation is disabled. When next enabled, the file will be reread and the compensation map is recalculated. This file is expected to be in the configuration directory.

The probe data file is generated by a probing program, which itself is generated by an external python program called gcode_ripper, which can be launched from the file manager tab using the G-code Ripper button.

11.1. Verwendung von G-code Ripper für die Z-Ebenen-Kompensation

QtDragon G-Code-Ripper
Abbildung 3. QtDragon_hd zeigt G-code Ripper
Anmerkung
G-code Ripper bietet viele Funktionen, auf die wir hier nicht näher eingehen werden. Diese sind nur in der QtDragon_hd Version verfügbar.
  • In qtdragon_hd, switch to the file tab and press the load G-code Ripper button.

  • Set origin to match the origin of the G-code file to be probed.

  • Under G-Code Operations, check Auto Probe.

  • Datei -> G-Code Datei öffnen (Die Datei, die Sie nach der Kompensation ausführen)

  • If necessary, make adjustments and press Recalculate.

  • Press Save G-Code File - Probe Only.

  • Save the generated file to the nc_files folder.

  • Exit gcode_ripper.

  • Without changing the offsets, run this program. Make sure the probe tool is installed. When complete, there will be a file in the config directory called probe_points.txt.

  • In qtdragon_hd, press the Enable Z Comp button to enable compensation. Look at the status line for indication of success or failure. Active compensation will be displayed beside the label: Z Level Comp While jogging that display should change based on the compensation component.

Anmerkung
Wenn Sie die automatische Anhebung Z verwenden, um die Spindel in der Pause anzuheben, müssen Sie die beiden mit einer HAL-Komponente kombinieren und diese an die Bewegungs (motion)-Komponente von LinuxCNC weiterleiten.
Sample postgui HAL file for combined spindle raise and Z Level compensation
# Komponenten laden
########################################################################

loadrt logic names=logic-and personality=0x102
addf logic-and servo-thread

# load a summing component for adding spindle lift and Z compensation
loadrt scaled_s32_sums
addf scaled-s32-sums.0 servo-thread

loadusr -Wn z_level_compensation z_level_compensation
# method parameter must be one of nearest(2), linear(1), cubic (0)
setp z_level_compensation.fade-height 0.0
setp z_level_compensation.method 1

# Signale mit der Bewegungskomponente von LinuxCNC verbinden
########################################################################

net eoffset-clear    axis.z.eoffset-clear
net eoffset-counts   axis.z.eoffset-counts
setp axis.z.eoffset-scale .001
net eoffset-total          axis.z.eoffset
setp axis.z.eoffset-enable True

# external offsets for spindle pause function
########################################################################
net eoffset-clear              qtdragon.eoffset-clear
net eoffset-spindle-count   <= qtdragon.eoffset-spindle-count
net spindle-pause              qtdragon.spindle-inhibit     spindle.0.inhibit

## Z level compensation
####################################################
net eoffset-clr2            z_level_compensation.clear      => logic-and.in-01
net xpos-cmd                z_level_compensation.x-pos      <= axis.x.pos-cmd
net ypos-cmd                z_level_compensation.y-pos      <= axis.y.pos-cmd
net zpos-cmd                z_level_compensation.z-pos      <= axis.z.pos-cmd
net z_compensation_on       z_level_compensation.enable-in  <= qtdragon.comp-on
net eoffset-zlevel-count    z_level_compensation.counts     => qtdragon.eoffset-zlevel-count

# add Z level and scaled spindle raise level values together
net eoffset-spindle-count   scaled-s32-sums.0.in0
net eoffset-zlevel-count    scaled-s32-sums.0.in1
setp scaled-s32-sums.0.scale0 1000
net eoffset-counts          scaled-s32-sums.0.out-s

12. Sondieren

The probe screen has been through basic testing but there could still be some minor bugs. When running probing routines, use extreme caution until you are familiar with how everything works. Probe routines run without blocking the main GUI. This gives the operator the opportunity to watch the DROs and stop the routine at any time.

Anmerkung
Die Sondierung ist sehr unempfindlich gegenüber Fehlern; überprüfen Sie die Einstellungen vor der Verwendung.

QtDragon has 2 methods for setting Z0. The first is a touchplate, where a metal plate of known thickness is placed on top of the workpiece, then the tool is lowered until it touches the plate, triggering the probe signal. The current user system’s (G5x) Z0 is set to probe height - the entered plate thickness.

The second method uses a tool setter in a fixed position and a known height above the table where the probe signal will be triggered. In order to set Z0 to the top of the workpiece, it has to know

  1. how far above the table the probe trigger point is (tool setter height) and

  2. how far above the table the top of the workpiece is.

This operation has to be done every time the tool is changed as the tool length is not saved.

For touching off with a touch probe, whether you use the touchplate operation with thickness set to 0 or use a probing routine, the height from table to top of workpiece parameter is not taken into account and can be ignored. It is only for the tool setter.

12.1. Versa Probe

QtDragon Sonde
Abbildung 4. QtDragon - Versa-Probe-Option

Versa probe is used to semi-automatically probe work pieces to find edges, centers and angles.
It can also be sued to auto probe tool length at tool changes with added remap code.

You must carefully set the Probing Parameters:

  • DIAMETER:: This is the diameter of the probe tip. The accuracy of probe measurements is directly affected by the accuracy of the probe tip diameter.

  • TRAVEL:: The distance that the probe will travel during the initial search. If the search distance is too short, you will receive a message like "G38 finished without making contact". For safety reasons, it is recommended to set this parameter to 3-4 mm more than probe stylus diameter.

  • LATCH RTN:: The distance the probe is retracted after making initial contact with the workpiece. This should be a short distance because the second approach will be at a slow speed, but large enough for the probe to break contact and bring it to the search ready state. If the Latch Rtn distance too large, you will end up spending a lot of time waiting for the search to complete. Recommendation: 1-2 mm

  • SEARCH:: This is the feed rate at which the probe searches for the target workpiece in machine units per minute. The search speed should be slow enough to give an acceptable initial accuracy, but fast enough to not waste time waiting for movement. Recommendation: 200-500 mm/min.

  • PROBE:: Once initial contact has been made and the probe is retracted, it will wait for 0.5 seconds before performing the search again at a lower speed, the probe velocity. This lower speed ensures the machine can stop movement as quickly as possible on contact with the workpiece.

  • RAPID:: Axis movements not associated with searching are done at the speed defined by RAPID in machine units per minute.

  • SIDE/EDGE LENGTH:: This is the distance the probe will move at the rapid rate to the position where it will begin a search. If measuring a corner, it will move EDGE LENGTH units away from the corner, then move away from the workpiece by XY CLEARANCE, lower by Z CLEARANCE and begin the initial search. If measuring an inner circle, then EDGE LENGTH should be set to the approximate radius of the circle. Note: NOT the diameter.

  • PROBE HT:: The height of the tool sensor from the machine table surface. This value is used to calculate the Z zero height for the current work coordinate system when using the probe with a tool setter sensor.

  • BLOCK HT:: The height of the top of the workpiece from the machine table surface. This value is used to calculate the Z zero height for the current work coordinate system when using the probe with a tool setter sensor.

  • XY CLEARANCE:: The distance that the probe will move away from an edge or corner before performing a search. It should be large enough to ensure that the probe will not contact the workpiece or any other fixtures before moving down. It should be small enough to avoid excessive waiting for movement while searching.

  • Z CLEARANCE:: The distance that the probe will move down before performing a search. If measuring an inside hole, the probe could be manually jogged to the starting Z height and then set Z CLEARANCE to 0.

There are three toggle buttons:

  • Auto Zero This selects if after probing the relevant axis is set to zero in the current user system.

  • Auto Skew This selects if after probing, the system will be rotated or just display the calculated rotation.

  • Tool Measure This (if integrated) turns auto tool probing on and off.

12.2. Basic probe

QtDragon Sonde
Abbildung 5. QtDragon - Grundlegende Sondenoption

Basic probe is used to semi-automatically probe work pieces to find edges, centers and angles. The combo box allows selecting the basic type of probing buttons shown:

  • Outside Corners

  • Inside Corners

  • Edge Angles

  • Boss and Pockets

  • Ridge and Valleys

  • Calibration

You must carefully set the Probing Parameters:

  • Probe Tool: will only allow probing if this tool number is in the spindle

  • Probe Diameter: the size of the probe tip

  • Probe Rapid: the speed of rapid moves in machine units

  • Probe Search: the speed of the first rough search in machine units

  • Probe Feed: the speed of the second fine search in machine units

  • Step Off: back off and re-probe distance

  • Max XY Distance: the maximum distance the probe will search for in X and Y before failing with error

  • Max Z Distance: the maximum distance the probe will search for in Z before failing with error

  • XY Clearance: clearance distance from probe to wall edge before rapid traversing down in Z and rough probing

  • Z Clearance: clearance distance from probed to top of material

  • Extra Depth: distance from top of material to desired probe depth

There are also hint parameters depending on selected probing type:

  • Edge Width: desired distance from the probe start position, along wall edge before starting to probe

  • Diameter Hint: used by Round Boss or Round Pocket probing (start move: 1/2 diameter plus XY clearance)

  • X Hint: used by Rectangular Boss/Pocket probing (start move: 1/2 X length plus XY clearance)

  • Y Hint: used by Rectangular Boss/Pocket probing (start move: 1/2 Y length plus XY clearance)

After setting the parameters and hints:

  • Manually move the probe to the approximate position represented by the green target on the button.

  • Confirm the parameters are reasonable.

  • Press the desired probing button.

The probing routine will start immediately.

Anmerkung
Pressing the stop button or the keyboard escape key, will abort the probing.

12.2.1. Corner Probe Example

Lets discuss inside corner probing using the top right button in Basic Probe (back_right_inside). While all probe entries must be correct, the most important settings to change for each each probe:

  • XY CLEARANCE - distance away from edge before rough probing,

  • Z CLEARANCE - distance from probe to top of material,

  • EXTRA DEPTH - distance to lower probe from top of material,

  • EDGE WIDTH - distance along edge wall (away from corner) to start probing.

Anmerkung
These distance are always to be set in machine units (mm for metric machine, inch for imperial machine).

Preset:

  • manual set probe at the intersection of the edges (ie corner) of material as described by the green bullseye on the button. Set it Z CLEARANCE above the top of material. These can be done by eye.

  • set EXTRA CLEARANCE to a value that you want the probe to go below the top of material. (So the probe will move from its start position down Z Clearance + Extra Clearance distance.)

  • set XY CLEARANCE to a value that definitely gives clearance from the wall so when the probe goes down it does not hit anything.

  • set EDGE WIDTH to a value that describes the distance measured from the corner, along the wall to where you wish to probe. this edge distance will be used along the X wall and then the Y wall.

Sequence after pressing the probe button:

  1. Rapid EDGE WIDTH distance away from corner at the same time moving XY CLEARANCE away from edge. So this is a slightly diagonal move.

  2. Move probe down by Z CLEARANCE + EXTRA DEPTH,

  3. probe wall twice (rough and fine),

  4. move diagonally to the other wall as set by EDGE WIDTH and XY CLEARANCE,

  5. probe wall twice,

  6. raise probe up by Z CLEARANCE + EXTRA DEPTH (returns to starting height),

  7. rapid back to starting corner (now calculated using the probed walls),

  8. if auto zero button is enabled, set X and Y of the current user system to zero.

13. Touch-Platte

QtDragon Touch-Platte
Abbildung 6. QtDragon Touch-Fläche (engl. touch plate)

You can use a conductive touch plate or equivalent to auto touch off (zero the user coordinate) for the Z position of a tool. There must be a tool loaded prior to probing. In the tool tab or settings tab, set the touch plate height, search and probe velocity and max. probing distance.

Anmerkung
Wenn Sie eine leitfähige Platte verwenden, sollten die Such- und Tastgeschwindigkeit gleich langsam sein. Wenn Sie einen Werkzeugwechsler mit gefedertem Verfahrweg verwenden, können Sie die Suchgeschwindigkeit schneller einstellen. LinuxCNC fährt die Geschwindigkeit mit der maximalen Beschleunigung herunter, so dass nach dem Auslösen des Messtasters ein Verfahrweg vorhanden sein kann, wenn die Geschwindigkeit zu hoch eingestellt ist.

Place the plate on top of the surface you wish to zero Z on. Connect the probe input wire to the tool (if using a conductive plate). There is a LED to confirm the probe connection is reliable prior to probing. Move the tool manually within the max probe distance. Press the Touch Plate button. The machine will probe down twice and the current user offset (G5X) will be zeroed at the bottom of the plate by calculation from the touchplate height setting.

14. Automatische Werkzeugmessung

QtDragon kann so eingestellt werden, dass es eine integrierte automatische Werkzeugmessung mit dem Versa Probe Widget und Remap-Code durchführt. Um diese Funktion zu nutzen, müssen Sie einige zusätzliche Einstellungen vornehmen und Sie können den angebotenen HAL-Pin verwenden, um Werte in Ihrer eigenen ngc-Remap-Prozedur zu erhalten.

Wichtig
Vergessen Sie nicht, vor dem ersten Test die Sondenhöhe und die Sondengeschwindigkeiten auf der Seite mit den Sondeneinstellungen einzugeben.

Die Werkzeugmessung in QtDragon erfolgt in den folgenden Schritten:

  • Touch off your workpiece in X and Y.

  • Measure the height of your block from the base, where your tool switch is located, to the upper face of the block (including chuck etc.).

  • Geben Sie auf der Registerkarte Versa-Sonde den Messwert für die Blockhöhe ein.

  • Stellen Sie sicher, dass die Schaltfläche "Werkzeugmessung verwenden" in der Registerkarte "Vesa-Sonde" aktiviert ist.

  • Gehen Sie in den Automatikmodus und starten Sie Ihr Programm.

Anmerkung
When fist setting up auto tool measurement, please use caution until you confirm tool change and probe locations - it is easy to break a tool/probe. Abort will be honoured while the probe is in motion.
images/sketch_auto_tool_measurement.png
Abbildung 7. Automatische Werkzeugvermessung

Beim ersten gegebenen Werkzeugwechsel wird das Werkzeug vermessen und der Versatz wird automatisch auf die Blockhöhe eingestellt. Der Vorteil dieser Methode ist, dass Sie kein Referenzwerkzeug benötigen.

Anmerkung
Ihr Programm muss am Anfang einen Werkzeugwechsel enthalten. Das Werkzeug wird gemessen, auch wenn es schon vorher verwendet wurde, so dass keine Gefahr besteht, wenn sich die Blockhöhe geändert hat. Es gibt mehrere Videos auf you tube, die diese Technik mit GMOCCAPY demonstrieren. Der GMOCCAPY-Bildschirm war der Wegbereiter dieser Technik.

The sequence of events (using the default files):

  • Rapid move in Z to position defined in the INI’s [TOOL_CHANGE] Z

  • Rapid move in X and Y to number defined in INI’s [TOOL_CHANGE] X and Y

  • Request tool change

  • Rapid move in X and Y to position defined in the INI’s [VERSA_TOOLSETTER] X and Y

  • Rapid move down in Z to position defined in the INI’s [VERSA_TOOLSETTER] Z

  • Probe down in Z to maximum defined in the INI’s [VERSA_TOOLSETTER] MAXPROBE

  • Return Z to position defined in the INI’s [TOOL_CHANGE] Z

Anmerkung
The [TOOL_CHANGE] Z position should be high enough so the tool will not hit the tool probe when moving to the [VERSA_TOOLSETTER] X and Y position. MAXPROBE distance needs to be high enough for the tool to touch the probe.

14.1. Werkstückhöhe Antasten

QtDragon_hd Höhen-Sondierung
Abbildung 8. QtDragon_hd - Werkstück Höhenabtastung

Dieses Programm tastet 2 benutzerdefinierte Positionen in der Z-Achse an und berechnet die Höhendifferenz.

Anmerkung
Diese Funktion ist nur in der Version QtDragon_hd verfügbar.
Buttons zum Einstellen der Sondenposition aktivieren
  • When checked, the SET buttons are enabled.

  • Dadurch kann der Benutzer die X-, Y- und Z-Parameter automatisch mit der aktuellen Position, wie sie auf den DROs angezeigt wird, ausfüllen.

Automatische Füllung der Werkstückhöhe auf dem Hauptbildschirm
  • When checked, the calculated height is automatically transferred to the Workpiece Height field in the main screen.

  • Andernfalls ist der Hauptbildschirm nicht betroffen.

Werkstücktaster bei
  • die X-, Y- und Z-Koordinaten geben an, wo die erste Sondierungsroutine im aktuellen WCS beginnen soll

Probenahme bei
  • die X-, Y- und Z-Koordinaten geben an, wo die zweite Sondierungsroutine beginnen soll, und zwar im aktuellen WCS

Z Sichere Fahrhöhe
  • Die Maschine wird auf die sichere Z-Fahrhöhe angehoben, bevor sie zu den X- und Y-Koordinaten rüttelt.

  • Die Spindel senkt sich dann auf die angegebene Z-Koordinate.

  • Sie sollte so gewählt werden, dass das Werkzeug beim Joggen alle Hindernisse überwindet.

START-Button
  • Die Maschine fährt zur ersten Position und tastet dann nach unten.

  • Die Maschine fährt dann zum zweiten Standort und tastet sich erneut nach unten.

  • Die Differenz der angetasteten Werte wird als berechnete Werkstückhöhe angegeben.

  • Die Parameter für Suchgeschwindigkeit, Sondengeschwindigkeit, maximale Sondenentfernung und Rücklaufentfernung werden von der Hauptseite der GUI-Einstellungen gelesen.

ABORT-Button
  • causes all jog and probe routines currently executing to stop.

HELP-Button
  • displays this help file.

  • Any 2 points within the machine operating volume can be specified.

  • If the first point is higher than the second, the calculated height will be a positive number.

  • If the first point is lower than the second, the calculated height will be a negative number.

  • Units are irrelevant in this program. The probed values are not saved and only the difference is reported.

Achtung
Setting incorrect values can lead to crashes into fixtures on the machine work surface. Initial testing with no tool and safe heights is recommended.

14.2. Werkzeugmess-Pins

Versaprobe offers 5 output pins for tool measurement purpose. The pins are used to be read from a remap G-code subroutine, so the code can react to different values.

  • qtversaprobe.enable (HAL_BIT) measurement enabled or not tool. Reflects screen button state.

  • qtversaprobe.blockheight (HAL_FLOAT) the measured height of the top face of the workpiece. Reflects screen entry.

  • qtversaprobe.probeheight (HAL_FLOAT) the toolsetter probe switch height. Reflects screen entry.

  • qtversaprobe.searchvel (HAL_FLOAT) die Geschwindigkeit, mit der nach dem Schalter für den Werkzeugmesstaster gesucht wird

  • qtversaprobe.probevel (HAL_FLOAT) the velocity to probe tool length. Reflects screen entry.

  • qtversaprobe.backoffdist (HAL_FLOAT) the distance the probe backs off after triggering. Reflects screen entry.

14.3. Änderungen an der INI-Datei für Werkzeugmessungen

Modify your INI file to include the following:

14.3.1. Der Abschnitt PROBE (Werkstück-Sensor)

QtDragon ermöglicht es Ihnen, eine von zwei Arten von Messtasterroutinen auszuwählen. Versa Probe arbeitet mit einem M6-Remap, um die automatische Werkzeugerfassung hinzuzufügen.

[PROBE]
#USE_PROBE = versaprobe
USE_PROBE = basicprobe

14.3.2. Der RS274NGC-Abschnitt

Anmerkung
These default entries should work fine in most situations. Some systems may need to use linuxcnc/nc_files/examples/ instead of linuxcnc/nc_files/. please check that paths are valid. Custom entries pointing to modified file are possible.
[RS274NGC]

# Adjust this paths to point to folders with stdglue.py, qt_auto_tool_probe.ngc and on_abort.ngc
# or similarly coded custom remap files.
SUBROUTINE_PATH = ~/linuxcnc/nc_files/remap-subroutines:\
~/linuxcnc/nc_files/remap_lib

# ist die Sub, die aufgerufen wird, wenn ein Fehler beim Werkzeugwechsel auftritt.
ON_ABORT_COMMAND=O <on_abort> Aufruf

# Der Remap-Code für die automatische Werkzeugsonde von Z der Versaprobe von QtVCP
REMAP=M6  modalgroup=6 prolog=change_prolog ngc=qt_auto_probe_tool epilog=change_epilog

14.3.3. Der Abschnitt Werkzeugsensor (engl. tool sensor)

The position of the tool sensor and the start position of the probing movement.
All values are absolute (G53) coordinates, except MAXPROBE, which is expressed in relative movement.
All values are in machine native units.
X,Y,Z set the tool setter probe location.
auto probe action sequence (this could be changed with a modified ngc remap file):

  • go to TOOLCHANGE Z position

  • go to TOOLCHANGE XY position.

  • wait for manual tool change acknowledgement

  • go to VERSA_TOOLSETTER XY position

  • go to VERSA_TOOLSETTER Z position

  • fast probe

  • slow probe

  • go to TOOLCHANGE Z position

Z_MAX_CLEAR is the Z position to go to before moving to the tool setter when using the Travel to Toolsetter button.
Travel to Toolsetter Action sequence:

  • go to VERSA_TOOLSETTER Z_MAX_CLEAR Z position

  • go to VERSA_TOOLSETTER XY position

  • go to VERSA_TOOLSETTER Z position.

[VERSA_TOOLSETTER]
X = 10
Y = 10
Z = -20
Z_MAX_CLEAR = -2
MAXPROBE =  -20

14.3.4. Der Abschnitt "Position ändern"

This is not named TOOL_CHANGE_POSITION on purpose - canon uses that name and will interfere otherwise. The position to move the machine before giving the change tool command. All values are in absolute coordinates. All values are in machine native units.

[CHANGE_POSITION]
X = 10
Y = 10
Z = -2

14.3.5. Die Python-Sektion

The Python section sets up what files LinuxCNC’s Python interpreter looks for, e.g., toplevel.py file in the python folder in the configuration directory: These default entries should work fine in most situations. Some systems may need to use linuxcnc/nc_files/examples/ instead of linuxcnc/nc_files/. Custom entries pointing to modified file are possible.

# The path start point for all remap searches, i.e. Python's sys.path.append()
PATH_APPEND = ~/linuxcnc/nc_files/remap_lib/python-stdglue/python
# path to the tremap's 'toplevel file
TOPLEVEL = ~/linuxcnc/nc_files/remap_lib/python-stdglue/python/toplevel.py

14.4. Required HAL Connections

Stellen Sie sicher, dass der Messtastereingang in Ihrer HAL-Datei angeschlossen ist: Bei korrektem Anschluss sollten Sie in der Lage sein, die Taster-LED in QtDragon umzuschalten, wenn Sie den Tasterstift drücken.

net probe motion.probe-input <= <Ihr_input_pin>

15. Ausführen von gegebener Zeile

Ein G-Code-Programm kann an jeder beliebigen Zeile gestartet werden, indem Sie im AUTO-Modus auf die gewünschte Zeile in der G-Code-Anzeige klicken. Es liegt in der Verantwortung des Bedieners sicherzustellen, dass sich die Maschine im gewünschten Betriebsmodus befindet. Es wird ein Dialogfeld angezeigt, in dem die Spindelrichtung und -geschwindigkeit voreingestellt werden können. Die Startlinie wird in dem Feld mit der Bezeichnung LINE neben der Taste CYCLE START angezeigt. Die Funktion "Von der Linie starten" kann auf der Einstellungsseite deaktiviert werden.

Anmerkung
LinuxCNC’s run-from-line is not very user friendly. E.g., it does not start the spindle or confirm the proper tool. Also, it does not handle subroutines well. If used it is best to start on a rapid move.

16. Laser-Buttons

The LASER ON/OFF button in intended to turn an output on or off which is connected to a small laser crosshair projector. When the crosshair is positioned over a desired reference point on the workpiece, the REF LASER button can be pushed, which then sets the X and Y offsets to the values indicated by the LASER OFFSET fields in the Settings page.

17. Beschreibung der Registerkarten

Tabs allow the user to select the most appropriate info/control on the top three panels. If the on screen keyboard is showing and the user wishes to hide it but keep the current tab, they can do that by pressing the current show tab. In QtDragon, there is a splitter handle between the G-code text display and the G-code graphical display. One can use this to split the size between the two areas. This can be set differently in each tab and in each mode.

17.1. Hauptregisterkarte

This tab displays the graphical representation of the current program. The side buttons will control the display.

  • User View: Select/restore a user set view of the current program.

  • P,X,Y,Z: Set standard views.

  • D: Toggle display of dimensions.

  • +, -: Zoom controls.

  • C: Clear graphics of tool movement lines.

In qtdragon_hd there are also macro buttons available on the right side. Up to tens buttons can be defined in the INI.

17.2. Registerkarte "Datei"

You can use this tab to load or transfer programs. Editing of G-code programs can be selected from this tab. With qtdragon_hd, this is where you can load the G-code Ripper.

17.3. Registerkarte "Offsets"

You can monitor/modify system offsets from this tab. There are convenience buttons for zeroing the rotation.G92 and current G5x user offset.

17.4. Registerkarte "Werkzeug"

You can monitor/modify tool offsets from this tab. Adding and deleting tools from the tool file can also be done from this tab. When this tab is selected the individual home buttons in the DRO area will change to tool offset setting buttons. They will return to home buttons when you select another tab. Pressing this tool button will drop down a when menu of options:

  • Set Current Tool Position

  • Adjust Current Tool Position

  • Zero Current Tool Position

  • Set Tool Offset Directly

  • Reset To Last

17.5. Registerkarte "Status"

A time-stamped log of important machine or system events will be shown here. Machine events would be more suited to an operator, where the system events may help in debugging problems.

17.6. Registerkarte "Sonde

Probing routines options are displayed on this tab. Depending on INI options, this could be VersaProbe or BasicProbe style. They are functionally similar. QtDragon_hd will also show a smaller graphics display window.

17.7. Camview-Registerkarte

If the recognized webcam is connected, this tab will display the video image overlaid with a cross-hair, circle and degree readout. This can be adjusted to suit a part feature for such things as touchoff. The underlying library uses openCV Python module to connect to the webcam.
To adjust the X or Y size aspect ratio, or camera number, look in the preference file for:

[CUSTOM_FORM_ENTRIES]
Camview xscale = 100
Camview yscale = 100
Camview cam number = 0

These are in percent, usually the range will be 100 - 200 in one axis.
The preference file can only be edited when QtDragon is not running.

17.8. G-Codes Registrierkarte

This tab will display a list of LinuxCNC’s G-code. if you click on a line, a description of the code will be displayed.

17.9. Registerkarte "Einstellungen"

It’s possible to load HTML or PDF file (.html / .pdf ending) with setup notes, and will be displayed in the setup tab.
If you load a G-code program and there is an HTML/PDF file of the same name, it will load automatically.
Some program, such as Fusion 360 and Aspire will create these files for you. You can also write your own HTML docs with the included SetUp Writer button.
There are three sub tabs:

  • HTML - any loaded HTML pages are displayed here. The navigation buttons work on this page.

  • PDF - any loaded PDF setup pages are displayed here.

  • PROPERTIES - when a program is loaded its G-code properties are displayed here.

There are navigation buttons for HTML page:

  • The up arrow returns you to the default HTML page.

  • The left arrow moves backward one HTML page.

  • The right arrow moves forward one HTML page.

If you wish to include a custom default HTML page, name it default_setup.html and place it in your configuration folder.
Custom QtVCP panels can be displayed in this tab by setting the EMBED_TAB_LOCATION option to tabWidget_setup.

QtDragon Setup-Registerkarte
Abbildung 9. QtDragon - Beispiel für die Registerkarte Setup

17.10. Registerkarte "Einstellungen"

Die Registerkarte "Einstellungen" dient zum Einstellen der Betriebsoptionen, der Offsets für Messtaster/Tastplatte/Laser/Kamera und zum Laden externer Debugging-Programme.

17.11. Registerkarte "Dienstprogramme"

This tabs will display another stab election of G-code utility programs:

  • Facing: allows quick face milling of a definable area at angles of 0,45 and 90 degrees.

  • Lochkreis: ermöglicht die schnelle Einstellung eines Programms zum Bohren eines Lochkreises mit definierbarem Durchmesser und Anzahl der Löcher.

  • NGCGUI: is a QtVCP version of the popular G-code subroutine builder/selector, see Widgets-NGCGUI.

Custom QtVCP panels can be displayed here by setting the EMBED_TAB_LOCATION option to tabWidget_utilities

17.12. User Tab

This tab will only be displayed if an embedded panel has been designated for the location stackedWidget_mainTab. If more then one embedded tab has been designated, then pressing the user tab will cycle through them.

18. Stile

Nearly all aspects of the GUI appearance are configurable via the QtDragon.qss stylesheet file. The file can be edited manually or through the stylesheet dialog widget in the GUI. To call up the dialog, press F12 on the main window. New styles can be applied temporarily and then saved to a new qss file, or overwrite the current qss file.

QtDragon-Stile
Abbildung 10. QtDragon - Zwei Stil-Beispiele

19. Anpassung

A general overview of Customizing Stock Screens.

19.1. Stylesheets

Stylesheets can be leveraged to do a fair amount of customization, but you usually need to know a bit about the widget names. Pressing F12 will display a stylesheet editor dialog to load/test/save modification. Sometimes these lines will be present and you can change them, otherwise you will need to add them.

For instance, to change the DRO font (look for this entry and change the font name):

DROLabel,
StatusLabel#status_rpm {
    border: 1px solid black;
    border-radius: 4px;
    font: 20pt "Noto Mono";
}

To change the DRO display font and display format:

DROLabel {
    font: 25pt "Lato Heavy";
    qproperty-imperial_template: '%9.5f';
    qproperty-metric_template: '%10.4f';
    qproperty-angular_template: '%11.2f';
}

So ändern Sie den Text der Schaltfläche "Nebel" in "Luft" (fügen Sie diese Zeilen ein)

#action_mist{
    qproperty-true_state_string: "Air\\nOn";
    qproperty-false_state_string: "Air\\nOff";
}

To change the Offsets display font and format:

ToolOffsetView {
    font: 20pt "Lato Heavy";
    qproperty-imperial_template: '%9.1f';
    qproperty-metric_template: '%10.1f';

}

OriginOffsetView {
    font: 12pt "Lato Heavy";
    qproperty-imperial_template: '%9.1f';
    qproperty-metric_template: '%10.1f';
}

To stop the blur effect with dialogs:

#screen_options {
    qproperty-focusBlur_option: false;
}

Change the G-code text display colors/fonts:

}
EditorBase{
 background:black;
qproperty-styleColorBackground:grey;
qproperty-styleColor0: black;
qproperty-styleColor1: darkblue;
qproperty-styleColor2: blue;
qproperty-styleColor3: red;
qproperty-styleColor4: lightblue;
qproperty-styleColor5: white;
qproperty-styleColor6: lightGreen;
qproperty-styleColor7: yellow ;
qproperty-styleColorSelectionText: white;
qproperty-styleColorSelectionBackground: blue;
qproperty-styleFont0: "Times,15,-1,5,90,0,0,1,1,0";
qproperty-styleFont1: "Times,15,-1,5,90,1,0,1,0,0";
qproperty-styleFont2: "Times,15,-1,5,90,0,0,1,1,0";
qproperty-styleFont3: "Times,15,-1,5,90,0,0,1,1,0";
qproperty-styleFont4: "Times,15,-1,5,90,0,0,1,1,0";
qproperty-styleFont5: "Times,15,-1,5,90,0,0,1,1,0";
qproperty-styleFont6: "Times,15,-1,5,90,0,0,1,1,0";
qproperty-styleFont7: "Times,15,-1,5,90,0,0,1,1,0";
}

To have the manual spindle buttons also incrementally increase/decrease speed:

#action_spindle_fwd{
    qproperty-spindle_up_action: true;
}
#action_spindle_rev{
    qproperty-spindle_down_action: true;
}

19.2. Qt Designer und Python-Code

All aspects of the GUI are fully customization through Qt Designer and/or Python code. This capability is included with the QtVCP development environment. The extensive use of QtVCP widgets keeps the amount of required Python code to a minimum, allowing relatively easy modifications. The LinuxCNC website has extensive documentation on the installation and use of QtVCP libraries. See QtVCP for more information about QtVCP in general.
QtDragon can also utilize QtVCP’s rc file to do minor python code modifications without using a custom handler file.

[DISPLAY]
USER_COMMAND_FILE = CONFIGFOLDER/qtdragonrc.py

See Modifying Screens for more information about customization.

QtDragon angepasst
Abbildung 11. QtDragon - Angepasster QtDragon
